Capabilities
Fabrication Services
We offer a wide range of fabrication services. Whether your parts require TIG welding or sawing, we possess the necessary metal manufacturing capabilities to complete your job with exceptional quality.
Fabrication Excellence and Machine Plus have an excellent track record of producing high-quality parts. We work with various metals, including steel, aluminum, and stainless steel, on multiple projects across multiple industries, including automotive, aerospace, manufacturing, medical, the US Navy, paper, food production, wrapping, and many more.
Sheet Metal Manufacturing Specifications & Capabilities

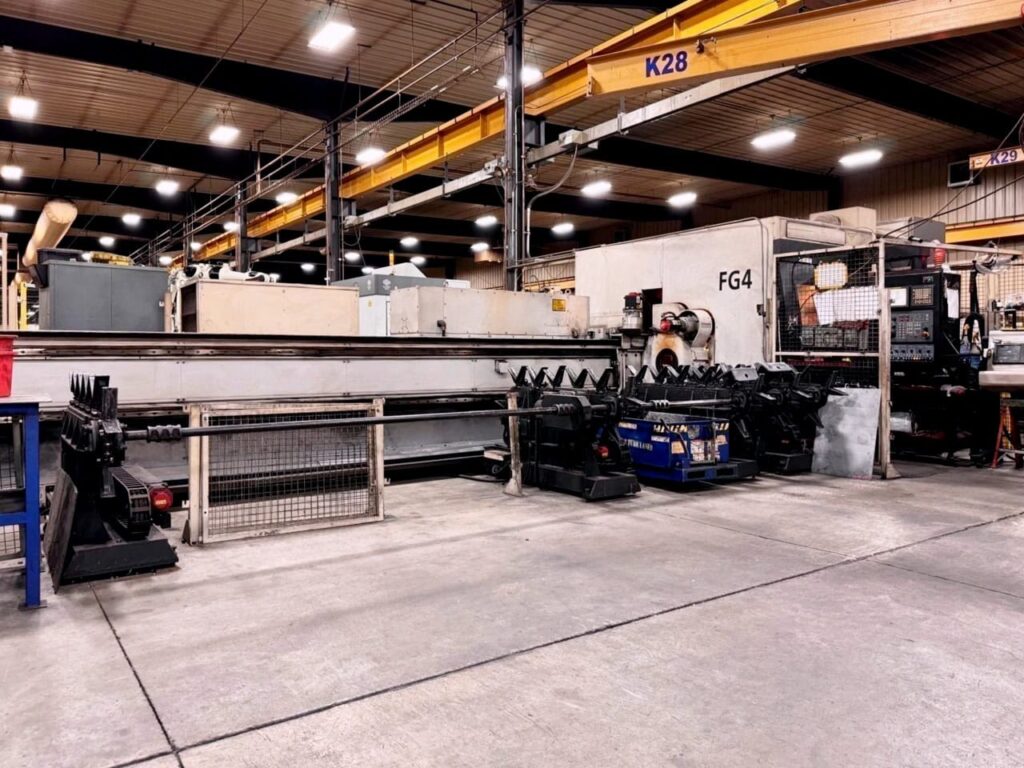

Our advanced 5-axis tube laser sets us apart in the industry, offering unmatched precision and versatility for cutting round, rectangular, angled, and channel profiles up to 6 inches in diameter. This capability enables us to efficiently process complex geometries and deliver high-quality results on a wide range of tubing projects, a service few shops can offer. In addition to tube laser processing, our facility features two flatbed lasers with 60” x 120” cutting areas and the ability to cut up to 1/2” thick material. We offer a comprehensive range of sheet metal fabrication services, including roll forming with material up to 7-gauge thickness, stainless bead blasting, polishing, and light assembly. Our team includes four skilled welders proficient in both MIG and TIG welding. We’re also equipped with an Amada HFA400W horizontal fully automatic saw for fast and consistent cutting, as well as a range of brake presses rated at 60, 125, and 250 tons to meet diverse forming needs.
Quality Control
Our 3D 5-axis Mastercam CMM is a versatile tool that shows deviation and produces ISO-compliant inspection reports. It can be used to build models from old parts and, when linked without CNC programming software, becomes an economical solution for us and our customers. The CMM comes equipped with Verisurf software, offering various functionalities, including Measure, a metrology tool for feature-based part inspection, and Automate, which enables fast and easy CMM programming and operation. Additionally, it enables data analysis by comparing inspection results with nominal CAD models and supports real-time, model-based inspection and assembly through the Build feature. With Powerful reverse engineering software, Revers, and efficient laser projector programming via Project, the CMM also validates CAD models to prevent manufacturing errors.
The Fowler Trimos Type V4-700 electronic Height Gauge further enhances our inspection capabilities, allowing for accurate and fast inspections that adhere to ISO standards. Our Inspection Department provides full inspection sheets; all inspection tools are certified annually. We maintain complete maintenance programs to ensure a 99.7% on-time delivery rate, with customer returns as low as 0.05%.
Machining Specifications and Capabilities
Turning

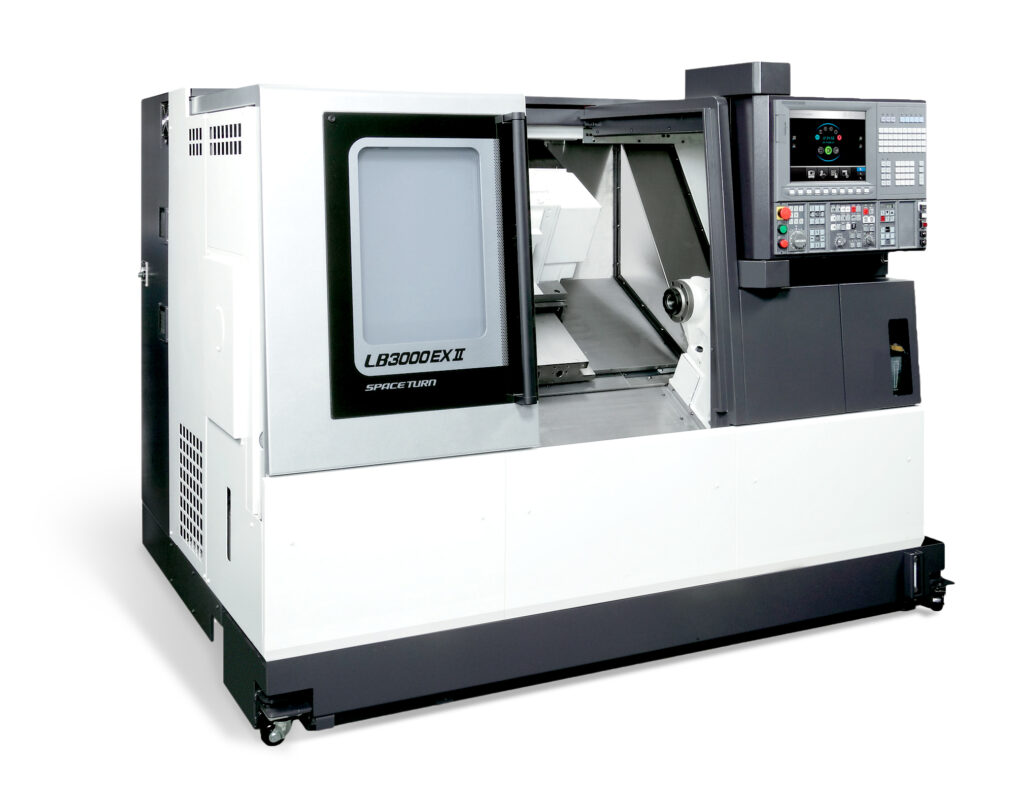

- Okuma LB3000EXBBMY Turning Center
- ➤ 15″ Diameter, 39″ Long Max
- ➤ 3.15″ Thru Spindle Hole
- ➤ 10″ Quick Charge Chuck
- ➤ 40 Horse Spindle
- ➤ Y-axis Mill/Drill/Tap
- ➤ Live Tooling 10 Horse Power
- ➤ Programmable Tail Stock
- 2-Mazak Turning Centers
- ➤ 15″ Diameter, 39″ Long Max
- ➤ 3.15″ Thru Spindle Hole
- ➤ Live Tooling
- ➤ Programmable Tail Stock
- ➤ Collet Chuck, 3 & 4 Jaw Chucks
- ➤ Bar Puller with Spindle Sleeves
Milling
- HAAS VF-9
- ➤ Up to 84″ x 42″ x 30″
- ➤ Thru Spindle Coolant

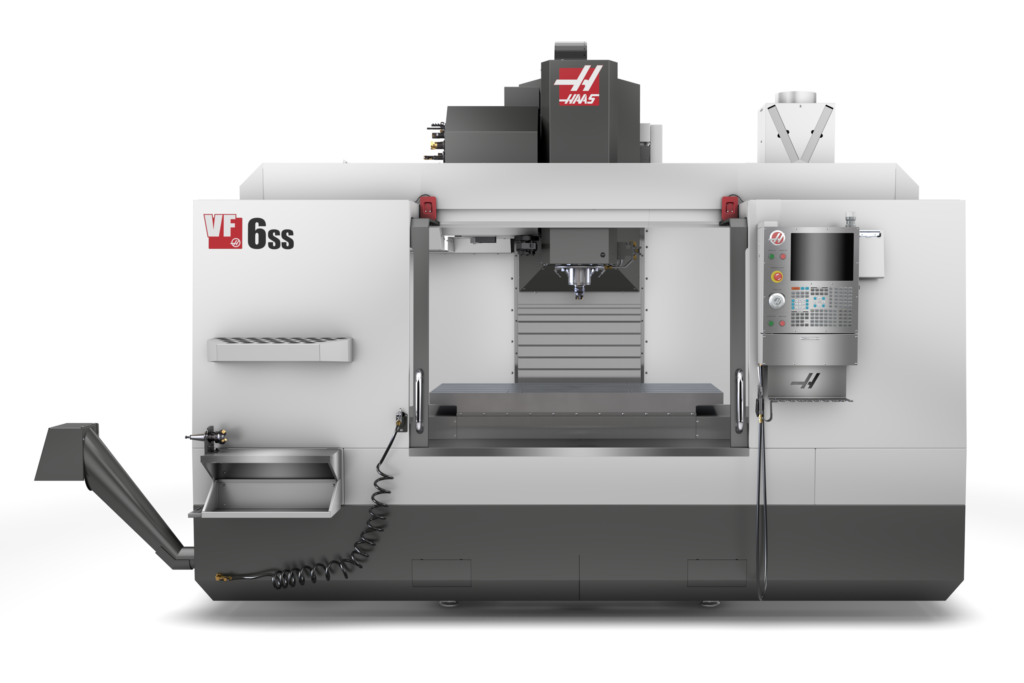

- HAAS VF-6SS Faster
- ➤ Up to 64″ x 32″ x 30″
- ➤ 1,000 PSI High-Pressure Thru Spindle
- ➤ Thru Spindle Air Blast

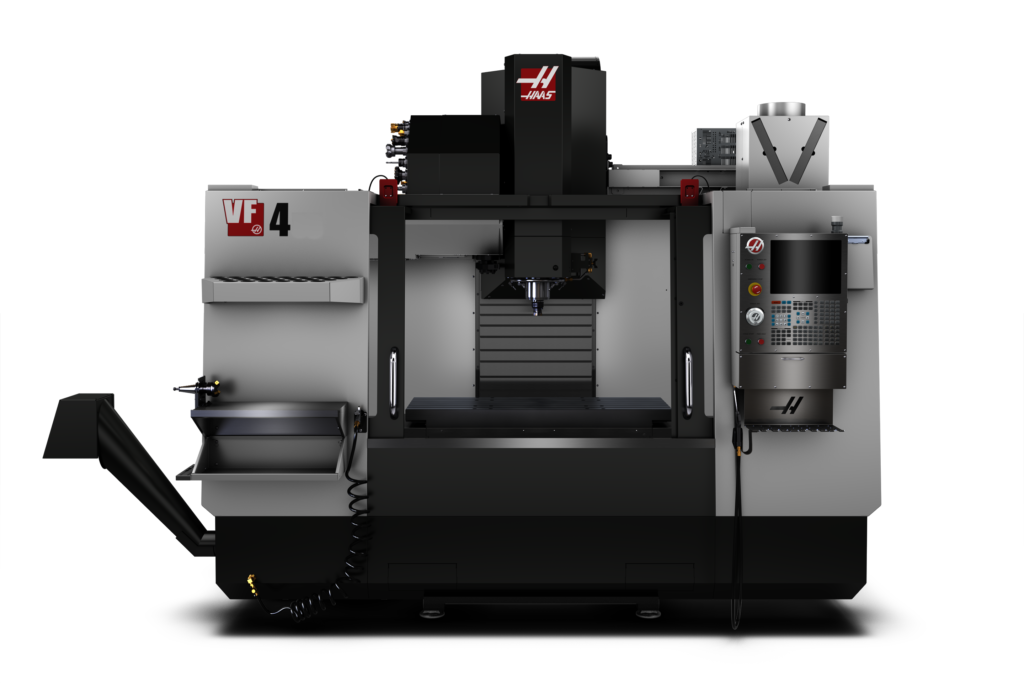

- HAAS VF-4
- ➤ Up to 50″ x 20″ x 30″
- ➤ Geared Spindle for Power
- ➤ Thru Spindle Coolant
- HAAS VF4-SS Faster
- ➤ Up to 50″ x 20″ x 30″
- ➤ 1,000 PSI High-Pressure Thru Spindle
- ➤ Thru Spindle Coolant

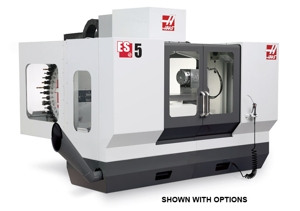

- HAAS Horizontal & 5-Axis Machining Centers
- ➤ HAAS ES-5 AX Horizontal
- ➤ Up to 40″ x 18″ x 22″ 3500 pound limit
- ➤ Thru Spindle
Why Choose Us
At Machine Plus and Fabrication Excellence, we have an excellent reputation for manufacturing high-quality parts with exceptional customer service. We strive to help our customers by supplying them with more than just precision metal parts. We continually expand our services to meet the evolving needs of the metal manufacturing industry.
Contact us to learn more about our services and to see how we can help make your project a success.
